Take-home Exercise 3

Exploring Vast Challenge Data

For this exercise, we will be looking at Mini-Challenge 3 of the VAST Challenge 2023 which is exploring ways to identify companies that may be engaged in illegal fishing. Specifically, this exercise aims to identify similarities among the companies and group them appropriately.

Install and launching R packages

The code chunk below uses p_load() of pacman package to check if the relevant packages are installed in the computer. If they are, then they will be launched into R. The data in JSON format is then loaded using the jsonlite package.

• jsonlite: Provides functions for working with JSON data.

• tidygraph: Provides tidyverse style interface for working with graph data.

• ggraph: Flexible and intuitive grammar of graphics approach for visualizing graphs.

• igraph: For working and analyzing graph data.

• visNetwork: For creating interactive network visualizations.

• tidyverse: A collection of core packages designed for data science, used extensively for data preparation and wrangling.

• tidytext: For text mining and analysis following tidyverse data principles.

• ggforce: Extends capabilities of ggplot2 such as animating plots.

• graphlayouts: Provides various layout algorithms for visualizing network graphs.

• skimr: Provides compact summaries of datasets.

• topicmodels: Provides tools for fitting and analyzing topic models.

• tm: Provides tools for text mining and analysis

• topicdoc: Topic-specific diagnostics for topic models using topicmodels

• textclean: For cleaning and processing text

• tidytext: Tool for text mining and analysis built on top of tidyverse ecosystem

• widyr: For pairwise comparisons and calculations in tidy data format

pacman::p_load(jsonlite, tidygraph, ggraph, visNetwork, tidyverse, tidytext, ggforce, visNetwork, graphlayouts, skimr, igraph,
               topicmodels, tm, topicdoc,
               textclean, tidytext, widyr)

MC3 <- fromJSON("data/MC3.json")

Loading Edges Data

The following code chunk extracts and transforms the edges data from the main data set. Only distinct edges are used. No missing data were found. From the bar chart below, the data seems to contain mainly links from companies to individuals who are either beneficial owners or company contacts.

Code

MC3_edges <- as_tibble(MC3$links) %>%
  distinct() %>%
  mutate(source = as.character(source),
         target = as.character(target),
         type = as.character(type)) %>%
  group_by(source, target, type) %>%
  summarise(weights = n()) %>%
  filter(source!=target) %>%
  ungroup()

Code

skim(MC3_edges)

Data summary

Name	MC3_edges
Number of rows	24036
Number of columns	4
_______________________
Column type frequency:
character	3
numeric	1
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
source	0	1	6	700	0	12856	0
target	0	1	6	28	0	21265	0
type	0	1	16	16	0	2	0

Variable type: numeric

skim_variable	n_missing	complete_rate	mean	sd	p0	p25	p50	p75	p100	hist
weights	0	1	1	0	1	1	1	1	1	▁▁▇▁▁

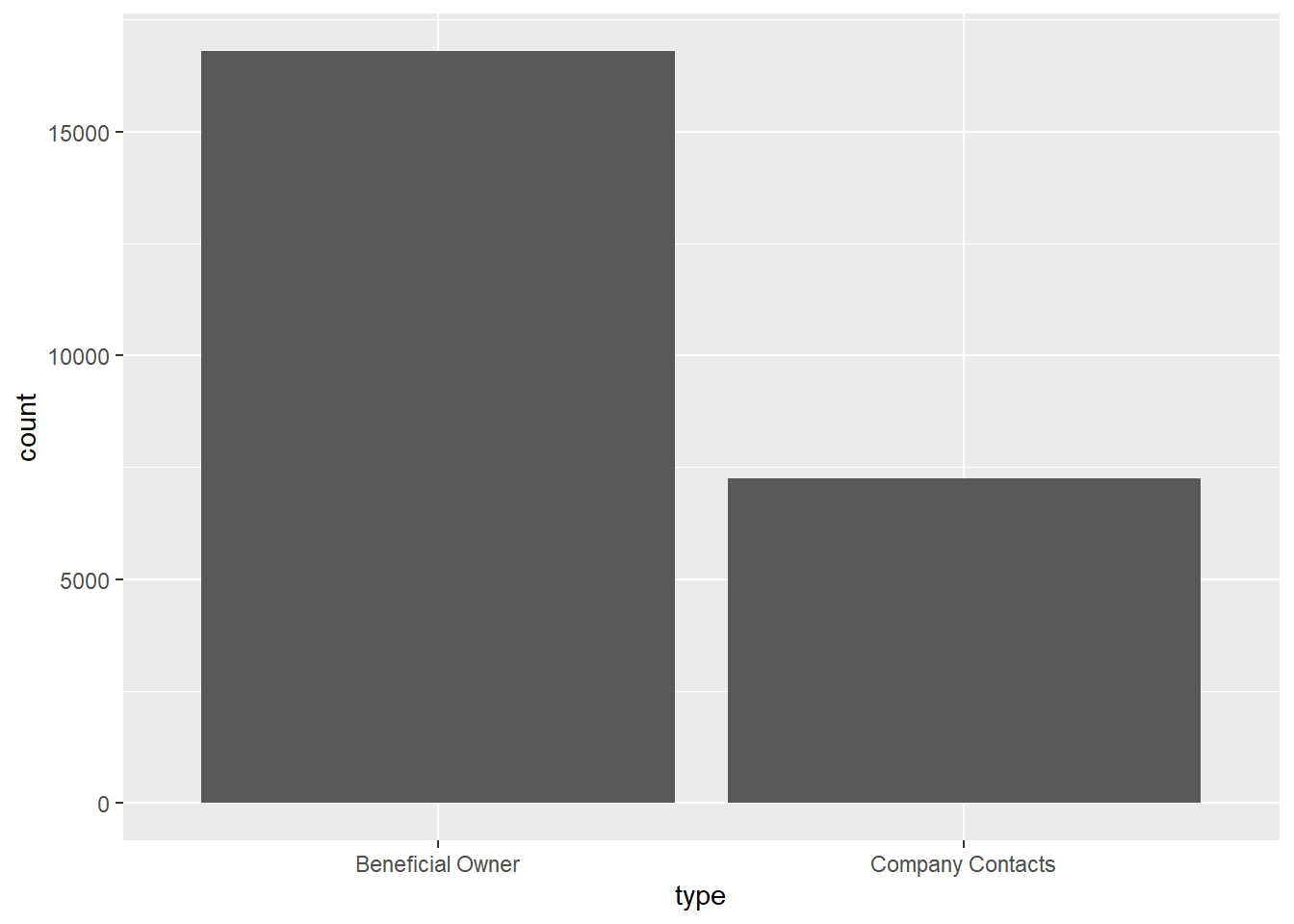

Code

ggplot(data = MC3_edges,
       aes(x = type)) +
  geom_bar()

Loading Nodes Data

The following code chunk extracts and transforms the nodes data from the data set. However, as the main objective is centered around businesses, we will only be focusing on companies and not individuals. Hence, the type of nodes is recoded to only reflect companies and non-companies. Each company is ensured to be uniquely identifiable by concatenating the records of multiple instances into a single row. Revenue data is computed as the sum of all instances.

Code

MC3_nodes <- as_tibble(MC3$nodes) %>%
  distinct() %>%
  mutate(country = as.character(country),
         id = as.character(id),
         product_services = as.character(product_services),
         revenue_omu = as.numeric(as.character(revenue_omu)),
         type = as.character(type)) %>%
  mutate(type = gsub("Company Contacts", "Contacts", type)) %>%
  mutate(product_services = ifelse(product_services == "character(0)" | product_services == "Unknown", '', product_services)) %>%
  group_by(id) %>%
  summarise(countries = paste(country, collapse = ", "),
            types = paste(type, collapse = ", "),
            revenue = sum(revenue_omu),
            description = paste(product_services, collapse = ";")) %>%
  mutate(types = ifelse(grepl("\\bCompany\\b", types), "Company", "Non-Company"),
         description = ifelse(grepl("\\b\\w+\\b", description), description, NA)) %>%
  select(id, countries, types, revenue, description)

From the summary below, we can see that revenue data is only available for about 20% of the records. Hence, we will not be using the revenue data for further investigation. While the description data faces a similar issue, there are still merits to explore similarities among businesses based on it which will be discussed in subsequent sections.

skim(MC3_nodes)

Data summary

Name	MC3_nodes
Number of rows	22929
Number of columns	5
_______________________
Column type frequency:
character	4
numeric	1
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
id	0	1.00	6	64	0	22929	0
countries	0	1.00	2	120	0	211	0
types	0	1.00	7	11	0	2	0
description	19035	0.17	4	1738	0	3272	0

Variable type: numeric

skim_variable	n_missing	complete_rate	mean	sd	p0	p25	p50	p75	p100	hist
revenue	17664	0.23	1637722	16795453	3652.23	7826.67	16366.67	49964.69	308249623	▇▁▁▁▁

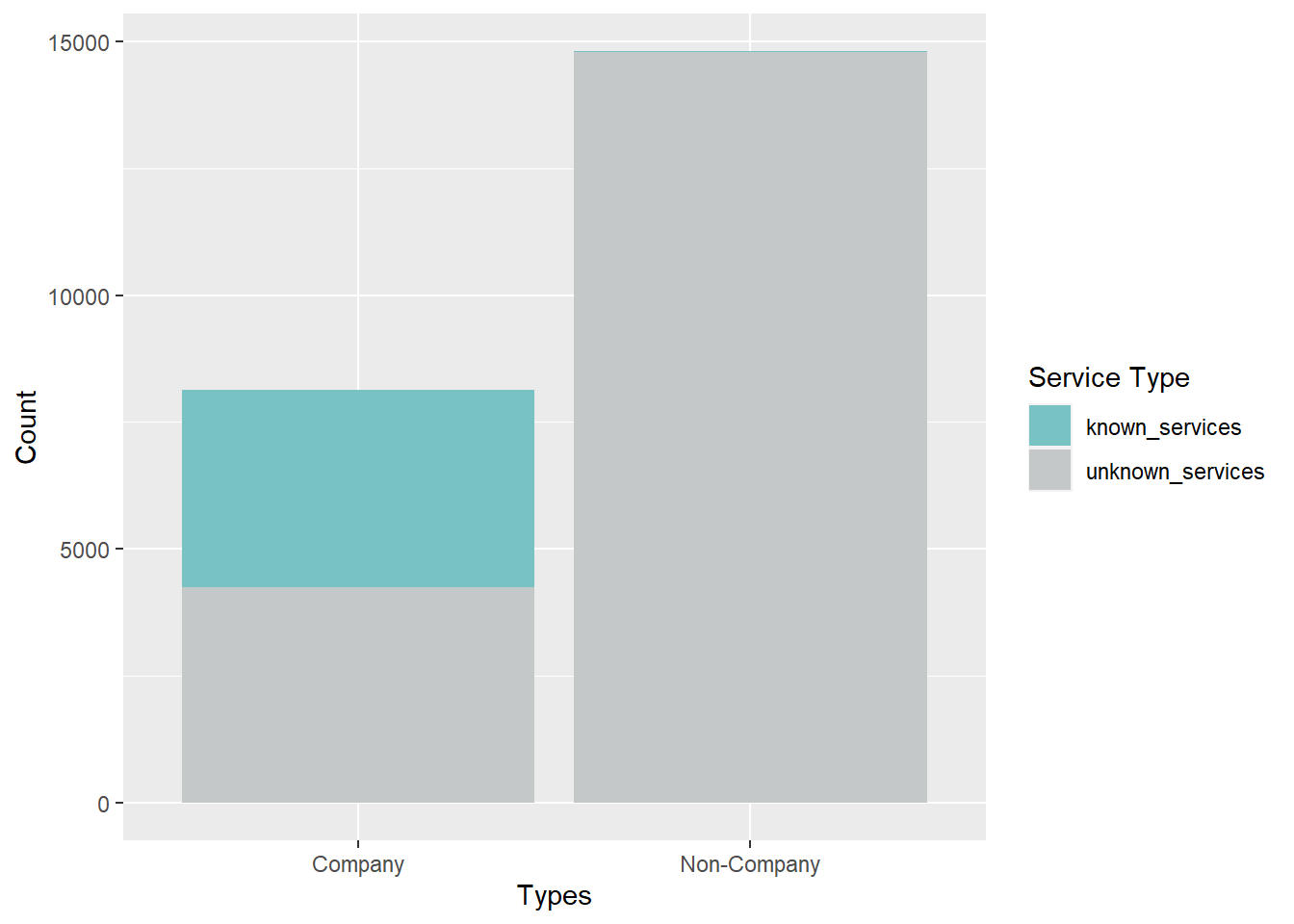

The bar chart below reveals that the majority of the records are actually related to non-company records. When we dive further into the breakdown, we realized that the descriptions actually makes up about half of all companies. Non-companies’ description have little meaning. Hence, we will investigate further in subsequent sections.

Code

cool_palette <- c("#78c2c4", "#C4C8C8")

MC3_nodes %>%
  group_by(types) %>%
  summarise(unknown_services = sum(is.na(description)),
            known_services = sum(!is.na(description))) %>%
  pivot_longer(cols = c(unknown_services, known_services),
               names_to = "Service_Type",
               values_to = "Count") %>%
  ggplot(aes(x = types, y = Count, fill = Service_Type)) +
  geom_bar(stat = "identity") +
  labs(x = "Types", y = "Count", fill = "Service Type") +
  scale_fill_manual(values = cool_palette)

Using LDA Topic Model to extract companies with fishing related services

From the descriptions of the companies, it is important for us to know which companies are indeed related to fishing. A naive way is to manually filter the descriptions that contains words that may be related to fishing such as through the code chunk below. However, we only managed to sort out about 1,000 companies.

Code

MC3_nodes %>%
  filter(grepl("fish|seafood|salmon|crab|carp|tuna", description, ignore.case = TRUE))

# A tibble: 981 × 5
   id                                        countries types revenue description
   <chr>                                     <chr>     <chr>   <dbl> <chr>
 1 2 Flounder ОАО Consultants                Oceanus   Comp…  10387. Sauce and …
 2 2 Limited Liability Company               Marebak,… Comp…     NA  Canning, p…
 3 9 Charter Boat  Plc Overseas              Marebak   Comp…  36658. Fish and f…
 4 Acosta, Proctor and Meyers                ZH        Comp…   7226. Frozen veg…
 5 Adair S.A. de C.V.                        Mawazam   Comp…  33309. Frozen cep…
 6 Adams Group                               ZH, ZH, … Comp…     NA  A range of…
 7 Adkins LLC                                ZH, ZH, … Comp…     NA  Frozen sea…
 8 Adriatic Mackerel N.V. Transport          Nalakond  Comp… 113379. Fish and s…
 9 Adriatic Squid AS Holdings                Nalakond  Comp…  16452. Canned sea…
10 Adriatic Squid Limited Liability Company… Oceanus   Comp…  24067. Fresh, cur…
# ℹ 971 more rows

The following code chunks will explore using the Latent Dirichlet Allocation (LDA) topic model to try to determine if the descriptions are related to fishing. The model assumes that documents (descriptions) are made up of a mixture of latent topics, and each topic is characterized by a distribution of words, allowing LDA to identify underlying topics in a collection of documents. In our case, we can try to generate 2 topics and see if we can separate the documents properly by looking at the distribution of words in each topic.

Before we create the topic model, the description columns need to be pre-processed. We will convert all the words to lower-case, remove punctuation, remove numbers, remove unnecessary stopwords and carry out stemming to obtain related words.

Code

MC3_nodes_filtered <- MC3_nodes %>%
  filter(!is.na(description))
corpus <- Corpus(VectorSource(MC3_nodes_filtered$description))
corpus <- tm_map(corpus, content_transformer(tolower))
corpus <- tm_map(corpus, removePunctuation)
corpus <- tm_map(corpus, removeNumbers)
corpus <- tm_map(corpus, removeWords, c(stopwords("en"), "unknown", "products"))
corpus <- tm_map(corpus, stripWhitespace)
corpus <- tm_map(corpus, stemDocument)

# Creating a document-term matrix
dtm <- DocumentTermMatrix(corpus)

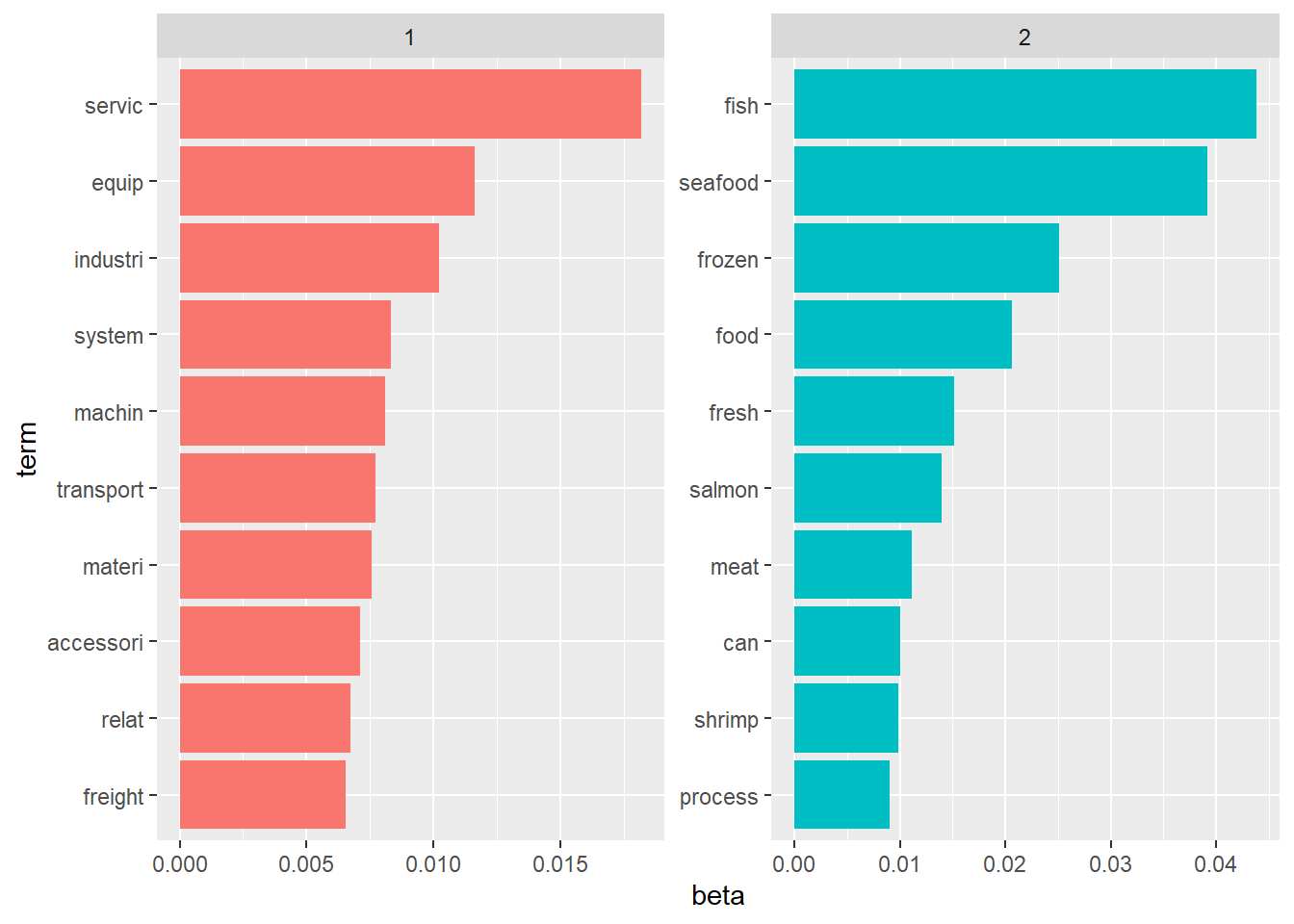

The LDA model is then generated. Based on the plot below, we can see that the words in topic 2 are strongly related to fishing while those in topic 1 seems to relate more to non-fishing activities. Hence, we can conclude that the topic model is indeed quite effective in differentiating companies based on their description.

Code

# Performing LDA
lda <- LDA(dtm, k = 2, control = list(seed = 12))  # k represents the number of topics

# Inspecting the results
node_topics <- tidy(lda, matrix = "beta")
node_top_terms <- node_topics %>%
  group_by(topic) %>%
  slice_max(beta, n = 10) %>%
  ungroup() %>%
  arrange(topic, -beta)

node_top_terms %>%
  mutate(term = reorder_within(term, beta, topic)) %>%
  ggplot(aes(beta, term, fill = factor(topic))) +
  geom_col(show.legend = FALSE) +
  facet_wrap(~ topic, scales = "free") +
  scale_y_reordered()

From the generated LDA model, we then extract the topic labels and merge them back with the nodes data. To be more conservative, we will still run a naive fishing-related word search on the labels to ensure that we did not miss out any companies that the LDA model may have labelled wrongly. We end up having more than half of the 4,000 companies being identified as fishing related based on the description alone.

Code

# Extract the topic assignments from the LDA model
document_topics <- tidy(lda, matrix = "gamma")

# Identify the maximum probability topic for each identifier
max_prob_topics <- document_topics %>%
  filter(!(gamma == 0.5 & topic != 2)) %>%
  group_by(document) %>%
  filter(gamma == max(gamma)) %>%
  select(document, topic)

# Merge the maximum probability topics with MC3_nodes
MC3_nodes_filtered$topic <- max_prob_topics$topic

MC3_nodes_filtered <- MC3_nodes_filtered %>%
  mutate(topic = ifelse(grepl("fish|seafood|salmon|crab|carp|tuna", description, ignore.case = TRUE), 2, topic)) %>%
  mutate(topic = case_when(
    topic == 1 ~ "Others",
    topic == 2 ~ "Fishing")) %>%
  distinct()

MC3_nodes_filtered %>%
  group_by(topic) %>%
  summarise(count = sum(topic == topic)) %>%
  ungroup()

# A tibble: 2 × 2
  topic   count
  <chr>   <int>
1 Fishing  2230
2 Others   1664

Final labelled nodes data

With the result of the topic model, we merge those labels with the original nodes data to obtain a final nodes data for further analysis in subsequent sections.

Code

MC3_nodes_labelled <- MC3_nodes %>%
  mutate(topic = NA) %>%
  left_join(MC3_nodes_filtered, by = c("id", "countries", "types", "description")) %>%
  mutate(topic = ifelse(is.na(topic.x) & is.na(topic.y), "Unknown", topic.y)) %>%
  select(id, countries, types, revenue.x, description, topic) %>%
  mutate(revenue = revenue.x) %>%
  select(id, countries, types, revenue, description, topic)

Visualizing Network with Community Detection

First, we will explore the complete nodes and edges data by construct the entire network to check if the network is disconnected using group_components.

Code

id1 <- MC3_edges %>%
  select(source) %>%
  rename(id = source)
id2 <- MC3_edges %>%
  select(target) %>%
  rename(id = target)
MC3_nodes_comm <- rbind(id1, id2) %>%
  distinct() %>%
  left_join(MC3_nodes_labelled,
            unmatched = "drop") %>%
  replace_na(list(countries = "Unknown",
                  types = "Unknown",
                  description = "Unknown",
                  topic = "Unknown"))

MC3_graph <- tbl_graph(nodes = MC3_nodes_comm,
                       edges = MC3_edges,
                       directed = FALSE) %>%
  mutate(betweeness_centrality = centrality_betweenness(),
         closeness_centrality = centrality_closeness(),
         community = as.factor(group_components()),
         node_size = ifelse(topic == "Fishing", 0.55, 0.5))

Based on the table below, we can tell that the network comprise of a large majority network coupled with 4 other smaller networks. For our exercise, we will focus on the larger network.

Code

temp <- MC3_graph %>%
  activate(nodes) %>%
  as.tibble()
temp %>%
  group_by(community) %>%
  summarise(count = n()) %>%
  arrange(desc(count)) %>%
  filter(count >100)

# A tibble: 5 × 2
  community count
  <fct>     <int>
1 1          6628
2 2           293
3 3           137
4 4           135
5 5           114

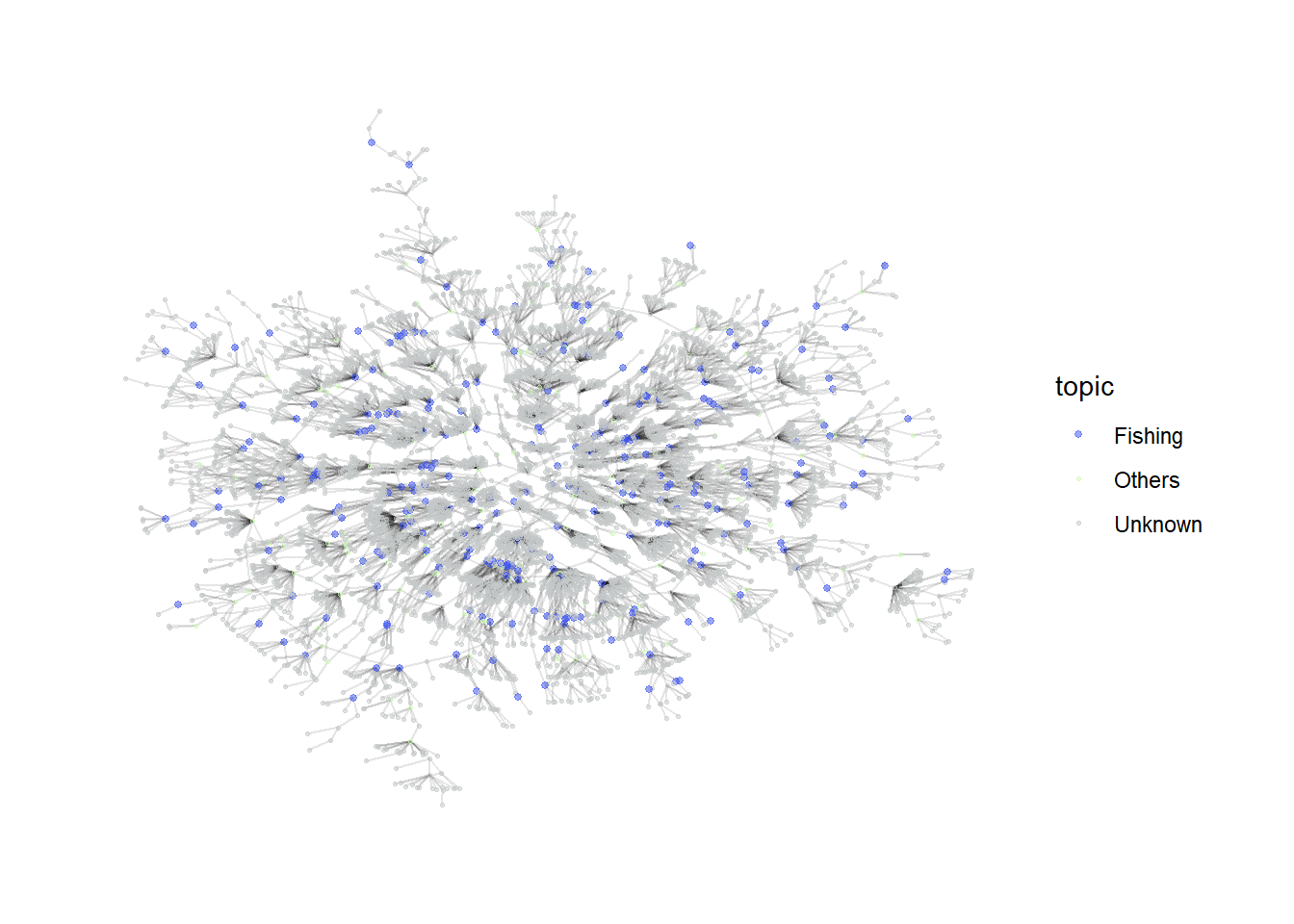

Based on the network graph below, we can tell that the fishing related companies are quite sparsely distributed across the network with no significant signs of them falling into a cluster. We will try to carry out community detection on this network to see if we can detect more granular sub-communities within it.

Code

my_colors <- c("#3C53F2", "#CFFAB6", "#C4C8C8")
my_sizes <- c(1, 0.5, 0.5)

MC3_graph %>%
  filter(community == 1) %>%
  ggraph (layout = 'kk') +
  geom_edge_link(aes(), alpha=0.1) +
  geom_node_point(aes(
    colour = topic,
    size = topic),
    alpha = 0.5) +
  scale_color_manual(values = my_colors) +
  scale_size_manual(values = my_sizes) +
  theme_graph()

Investigating Largest Connected Community

Using group_label_prop()

First, we explore the label propagation algorithm. As the number of sub_communities generated is very large, we will only focus on the top 5 communities with the highest number of nodes.

Code

MC3_graph_largest <- MC3_graph %>%
  filter(community == 1) %>%
  select(-c(betweeness_centrality, closeness_centrality, community)) %>%
  mutate(betweeness_centrality = centrality_betweenness(),
         closeness_centrality = centrality_closeness(),
         sub_community = as.factor(group_label_prop()))

Code

temp <- MC3_graph_largest %>%
  activate(nodes) %>%
  as.tibble()
temp %>%
  group_by(sub_community) %>%
  summarise(count = n()) %>%
  arrange(desc(count)) %>%
  filter(count >1)

# A tibble: 646 × 2
   sub_community count
   <fct>         <int>
 1 1               122
 2 2                96
 3 3                74
 4 4                64
 5 5                62
 6 6                54
 7 7                53
 8 8                52
 9 9                51
10 10               50
# ℹ 636 more rows

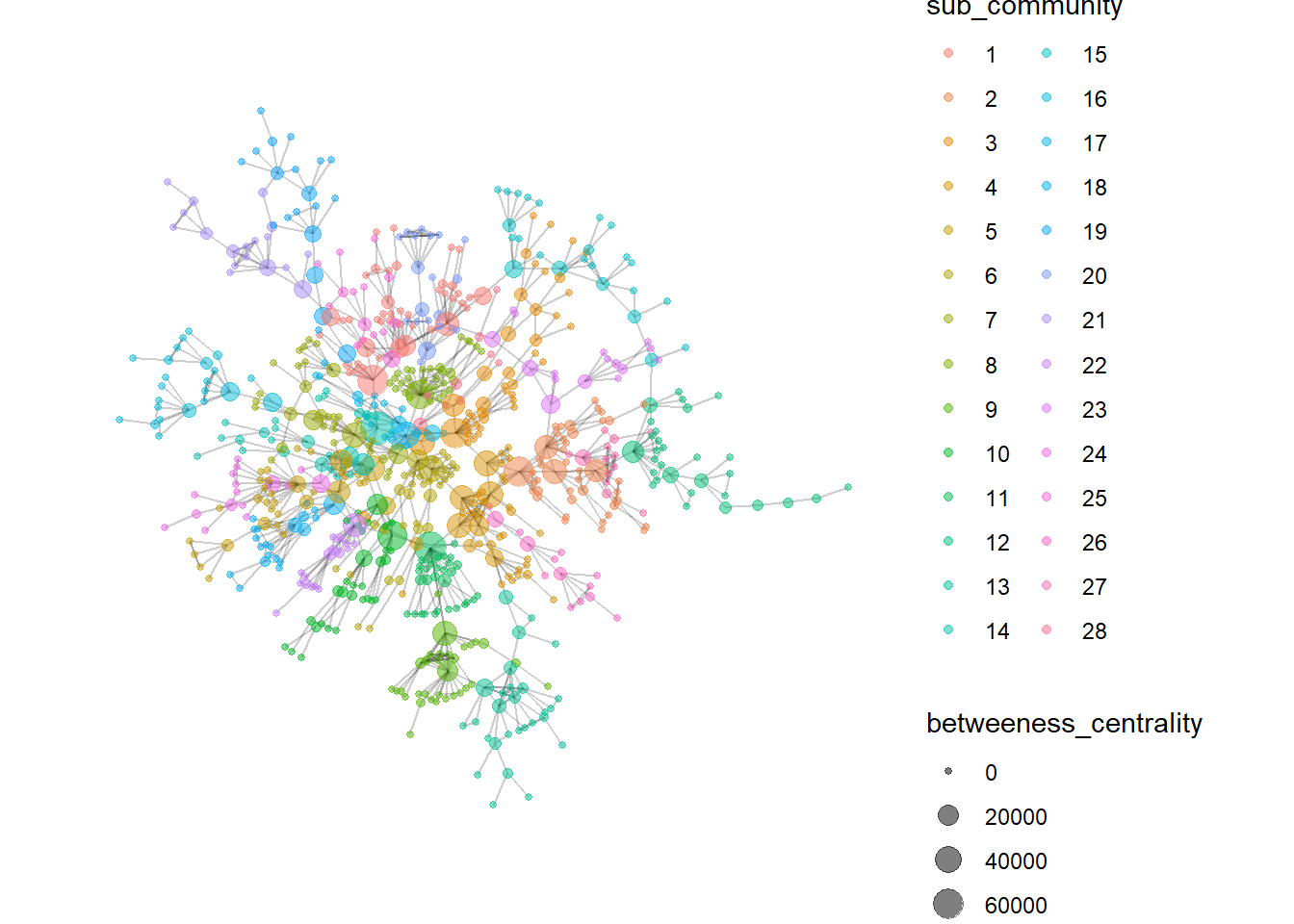

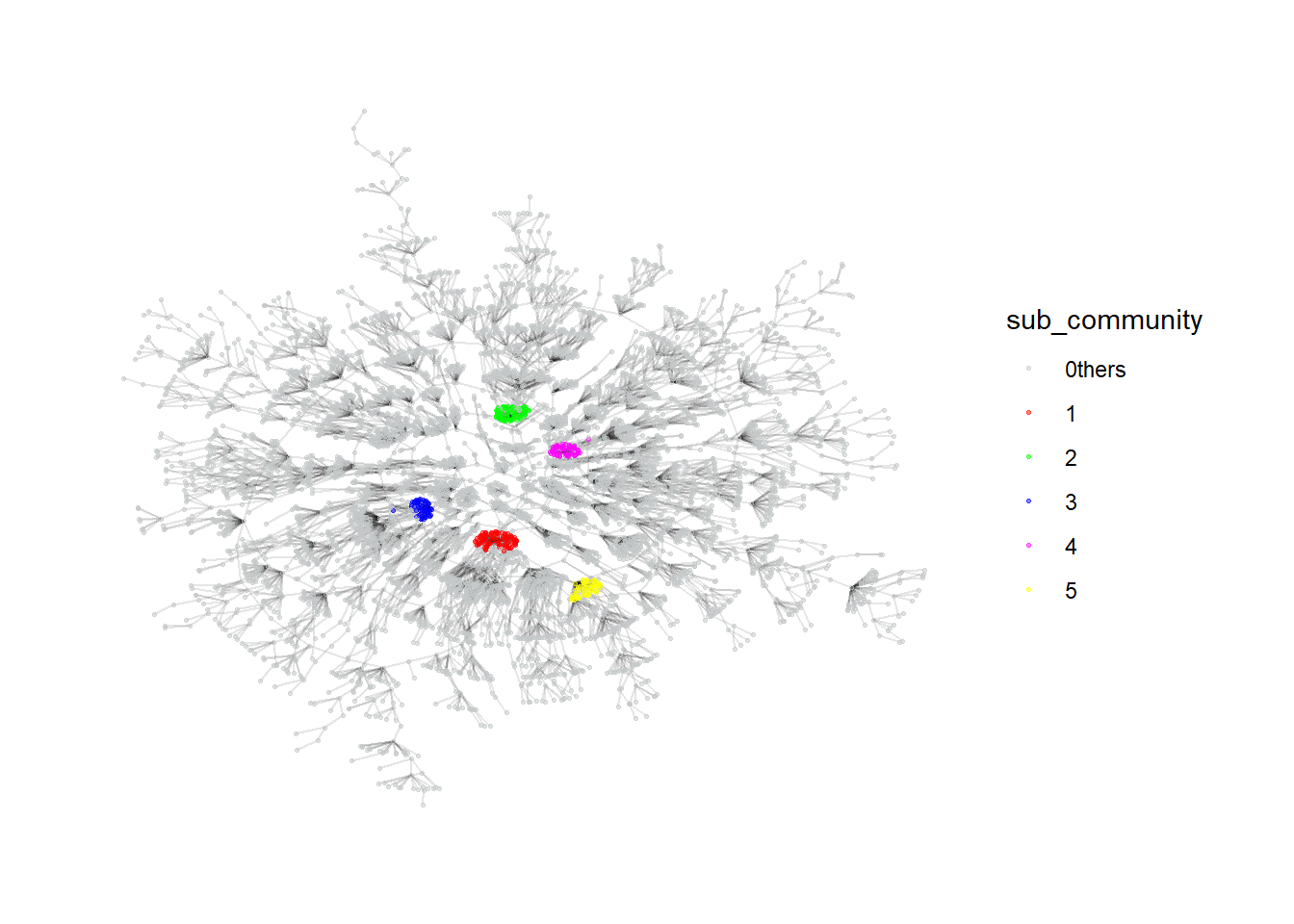

From the graph, the algorithm seems to be able to generate relatively effective communities as they are quite closely connected. The labels can serve as a feature for further downstream investigation.

Code

my_colors <- c("#C4C8C8", "#FF0000", "#00FF00", "#0000FF", "#FF00FF", "#FFFF00")

plot_top5 <- MC3_graph_largest %>%
  mutate(sub_community = ifelse(as.numeric(sub_community) >5, "0thers", sub_community)) %>%
  ggraph (layout = 'kk') +
  geom_edge_link(aes(), alpha=0.1) +
  geom_node_point(aes(
    colour = sub_community),
    alpha = 0.5,
    size = 0.5
  ) +
  scale_color_manual(values = my_colors) +
  theme_graph()
plot_top5

Using group_infomap

Similarly, we will explore another algorithm using group_infomap. The top 5 generated clusters also seem to be quite dense and can be possibly used for further investigation as well.

Code

MC3_graph_largest <- MC3_graph %>%
  filter(community == 1) %>%
  select(-c(betweeness_centrality, closeness_centrality, community)) %>%
  mutate(betweeness_centrality = centrality_betweenness(),
         closeness_centrality = centrality_closeness(),
         sub_community = as.factor(group_infomap()))

Code

temp <- MC3_graph_largest %>%
  activate(nodes) %>%
  as.tibble()
temp %>%
  group_by(sub_community) %>%
  summarise(count = n()) %>%
  arrange(desc(count)) %>%
  filter(count >1)

# A tibble: 594 × 2
   sub_community count
   <fct>         <int>
 1 1                95
 2 2                73
 3 3                59
 4 4                54
 5 5                52
 6 6                51
 7 7                49
 8 8                47
 9 9                47
10 10               47
# ℹ 584 more rows

Code

my_colors <- c("#C4C8C8", "#FF0000", "#00FF00", "#0000FF", "#FF00FF", "#FFFF00")

plot_top5 <- MC3_graph_largest %>%
  mutate(sub_community = ifelse(as.numeric(sub_community) >5, "0thers", sub_community)) %>%
  ggraph (layout = 'kk') +
  geom_edge_link(aes(), alpha=0.1) +
  geom_node_point(aes(
    colour = sub_community),
    alpha = 0.5,
    size = 0.5
  ) +
  scale_color_manual(values = my_colors) +
  theme_graph()
plot_top5

Visualizing Network by Common Links between Companies

Besides investigating the entire network, we can also focus on company nodes alone, with the edges defined as having common owners or contacts between the companies. This alternative network will then be able to provide some insights on companies that are strongly related to each other through a couple of individuals. For this investigation, we assume that the source column of the edges data are all companies while the target column comprises of individuals that are related to them since the type in the edges data consists of only beneficial owners and company contacts. We will generate the data by joining the edges data table by itself on the target column and filtering away all sources that have the same companies. We will also check if the resulting network comprise of any disconnected communities.

Code

MC3_edges_links <- MC3_edges %>%
  left_join(MC3_edges, by = join_by(target, type)) %>%
  filter(source.x != source.y) %>%
  select(source.x, source.y, target) %>%
  group_by(source.x, source.y) %>%
  summarise(weight = n())

id1 <- MC3_edges_links %>%
  select(source.x) %>%
  rename(id = source.x)
id2 <- MC3_edges_links %>%
  select(source.y) %>%
  rename(id = source.y)
MC3_nodes_links <- rbind(id1, id2) %>%
  distinct() %>%
  left_join(MC3_nodes_labelled,
            unmatched = "drop") %>%
  replace_na(list(countries = "Unknown",
                  types = "Unknown",
                  description = "Unknown",
                  topic = "Unknown"))

MC3_graph_links <- tbl_graph(nodes = MC3_nodes_links,
                       edges = MC3_edges_links,
                       directed = FALSE) %>%
  mutate(betweeness_centrality = centrality_betweenness(),
         closeness_centrality = centrality_closeness(),
         community = as.factor(group_components()))

From the table below, we can tell that about 700 companies are actually connected in some ways with each other while the rest make up small networks among themselves. We will investigate the large network in more detail to see if any insights can be drawn.

temp <- MC3_graph_links %>%
  activate(nodes) %>%
  as.tibble()
temp %>%
  group_by(community) %>%
  summarise(count = n()) %>%
  arrange(desc(count))

# A tibble: 5,431 × 2
   community count
   <fct>     <int>
 1 1           733
 2 2            32
 3 3            16
 4 4            15
 5 5            13
 6 6            13
 7 7            12
 8 8            12
 9 9            12
10 10           11
# ℹ 5,421 more rows

Investigating Largest Linked Community

We will be using the group_edge_betweeness to determine the community structure for the linked network. The generated communities seem to be relatively similar in size, at least for the top few communities.

Code

MC3_graph_links_largest <- MC3_graph_links %>%
  filter(community == 1) %>%
  select(-c(betweeness_centrality, closeness_centrality, community)) %>%
  mutate(betweeness_centrality = centrality_betweenness(),
         closeness_centrality = centrality_closeness(),
         sub_community = as.factor(group_edge_betweenness()))

Code

temp <- MC3_graph_links_largest %>%
  activate(nodes) %>%
  as.tibble()
temp %>%
  group_by(sub_community) %>%
  summarise(count = n()) %>%
  arrange(desc(count))

# A tibble: 28 × 2
   sub_community count
   <fct>         <int>
 1 1                45
 2 2                43
 3 3                42
 4 4                41
 5 5                35
 6 6                33
 7 7                33
 8 8                32
 9 9                32
10 10               32
# ℹ 18 more rows

The network graph also suggests high betweeness centrality companies that links most of the other companies together forming the bridges of the communities. It may be worthwhile to further investigate these companies in detail.

Code

MC3_graph_links_largest %>%
  #mutate(sub_community = ifelse(as.numeric(sub_community) >5, "0thers", sub_community)) %>%
  ggraph (layout = 'kk') +
  geom_edge_link(aes(), alpha=0.1) +
  geom_node_point(aes(
    colour = sub_community,
    size = betweeness_centrality),
    alpha = 0.5
  ) +
  #scale_color_manual(values = my_colors) +
  theme_graph()

Visualizing Network with Textual Data

Finally, we can also find similar companies based on their descriptions. Unlike with topic modeling, we will carry out pairwise similarity calculations for all companies to check if companies have similar businesses. Those with similar businesses will firm edges with each other and we will explore if the resulting network can give us some insights.

Code

cleaned_data <- MC3_nodes_filtered %>%
  select(id, description) %>%
  unnest_tokens(word, description) %>%
  anti_join(stop_words)  %>%
  count(id, word, sort = TRUE) %>%
  bind_tf_idf(word, id, n)

similarity_edge <- pairwise_similarity(cleaned_data, id, word, tf_idf) %>%
  filter(similarity > 0.95) %>%
  rename(source = item1) %>%
  rename(target = item2) %>%
  rename(weight = similarity)

Code

id1 <- similarity_edge %>%
  select(source) %>%
  rename(id = source)
id2 <- similarity_edge %>%
  select(target) %>%
  rename(id = target)
similarity_nodes <- rbind(id1, id2) %>%
  distinct() %>%
  left_join(MC3_nodes_labelled,
            unmatched = "drop") %>%
  replace_na(list(countries = "Unknown",
                  types = "Unknown",
                  description = "Unknown",
                  topic = "Unknown"))

MC3_graph_similarity <- tbl_graph(nodes = similarity_nodes,
                       edges = similarity_edge,
                       directed = FALSE) %>%
  mutate(betweeness_centrality = centrality_betweenness(),
         closeness_centrality = centrality_closeness(),
         community = as.factor(group_edge_betweenness()))

Code

temp <- MC3_graph_similarity %>%
  activate(nodes) %>%
  as.tibble()
temp %>%
  group_by(community) %>%
  summarise(count = n(),
            pct_Fishing = as.integer(sum(topic == "Fishing")/count*100),
            pct_Others = as.integer(sum(topic == "Others")/count*100)) %>%
  arrange(desc(count))

# A tibble: 222 × 4
   community count pct_Fishing pct_Others
   <fct>     <int>       <int>      <int>
 1 1            65         100          0
 2 2            52         100          0
 3 3            38          42         57
 4 4            35         100          0
 5 5            24          45         54
 6 6            22         100          0
 7 7            19         100          0
 8 8            19         100          0
 9 9            17         100          0
10 10           17          58         41
# ℹ 212 more rows

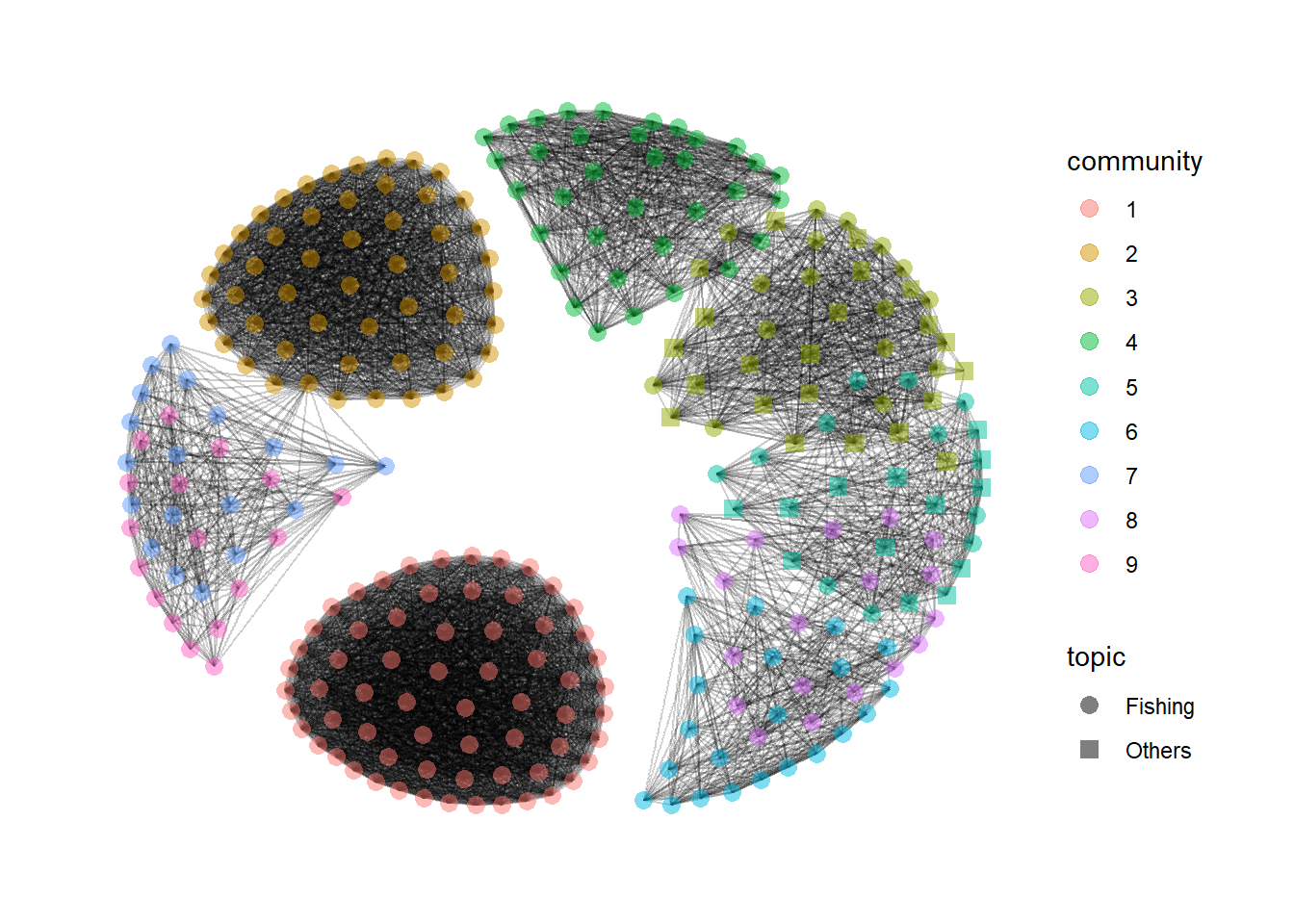

From the generated graph of the top 10 communities, companies in communities 1 and 2 are very densely connected to each other, suggesting very clear and distinct similarities in their businesses. The other communities seem to have some overlapping business descriptions. This may suggest an alternative method to classify the business similarities based on their descriptions for further investigation to detect anomalies.

Code

MC3_graph_similarity %>%
  filter(as.numeric(community) < 10) %>%
  ggraph (layout = 'kk') +
  geom_edge_link(aes(), alpha=0.1) +
  geom_node_point(aes(
    colour = community,
    shape = topic),
    alpha = 0.5,
    size = 3) +
  scale_shape_manual(values = c(16,15)) +
  theme_graph()
